Product Description

Product Parameters
Server ModelDell PowerEdge R960
ProcessorUp to four 4th Generation Intel Xeon Scalable processor with up to 60 cores per processor
MemoryUp to 64 DDR5 RDIMMs NVDIMM: Not supported; DIMM speed: up to 4800 MT/s
Storage controllersInternal Controllers: PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i; Internal Boot: Boot Optimized Storage Subsystem(BOSS-N1): HWRAID 2 x M.2 NVMe SSDs or USB; External HBA (non-RAID): HBA355e; Software RAID: S160
Drive BaysUp to 24 2.5 inch SAS/SATA HDDs/SSDs; Up to 24 2.5 inch NVMe SSDs; Up to 8 E3. S NVMe hard drives; Back: Up to two 2.5 inch hot swappable SAS/SATA or NVMe HDDs
Power Supplies1100W, 1400W, 1800W, 2400W, 2800W
High availabilityHot swap/RAID controlled hard disk, high power air cooling configuration, PSU, BOSS-N1 (2 M.2 MVMe)
Dimensions4U x 434mm x 812mm
Embedded ManagementLicensing options for iDRAC9 Enterprise Edition and Data Center Edition; OpenManage Enterprise and plug-ins
Front PortsVGA, 1 USB 2.0, iDRAC Direct mini USB, ID button and LED
Rear PortsVGA, 1 USB 2.0, 1 USB 3.0, management RJ-45, 2 LOM RJ-45, 1 serial port (optional)
PCIeUp to 8 PCIe Gen4 or Gen5 slots without SNAPI No CXL
Warranty3 years
Products Description

Dell PowerEdge R960 Server

  • The R960 is powered by four (4) Intel Xeon scalable processors in a 4U air-cooled form factor with superior vertical scaling capabilities to power businesses and drive data-driven initiatives.
  • The R960 has a maximum number of CPU cores of 60, can support 64 DDR5 DIMMs (a total of 16 TB of memory), and can run large in-memory databases, removing the need for slower I/O database access.
  • By supporting up to 24 NVMe drives, DDR5 DIMMs, 12 PCIe 5.0 slots for I/O expansion, LOM, and industry standard OCP to expand business needs and give customers the flexibility to connect to the network.
  • Support for fast 1:1 CPU-I/O communication via PCIe Gen5 adapter.
Product Display

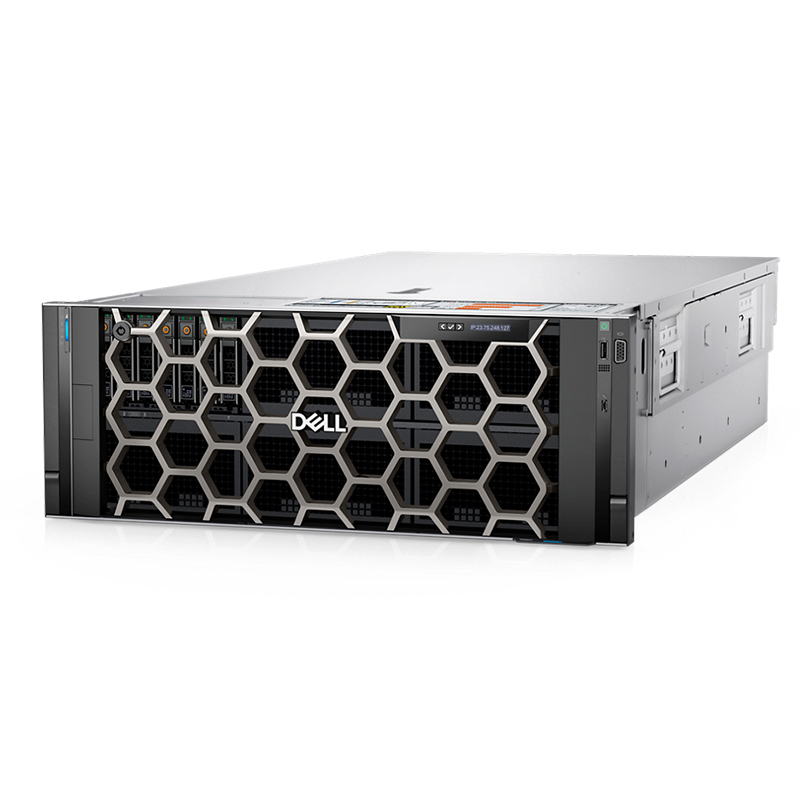

Dell R960

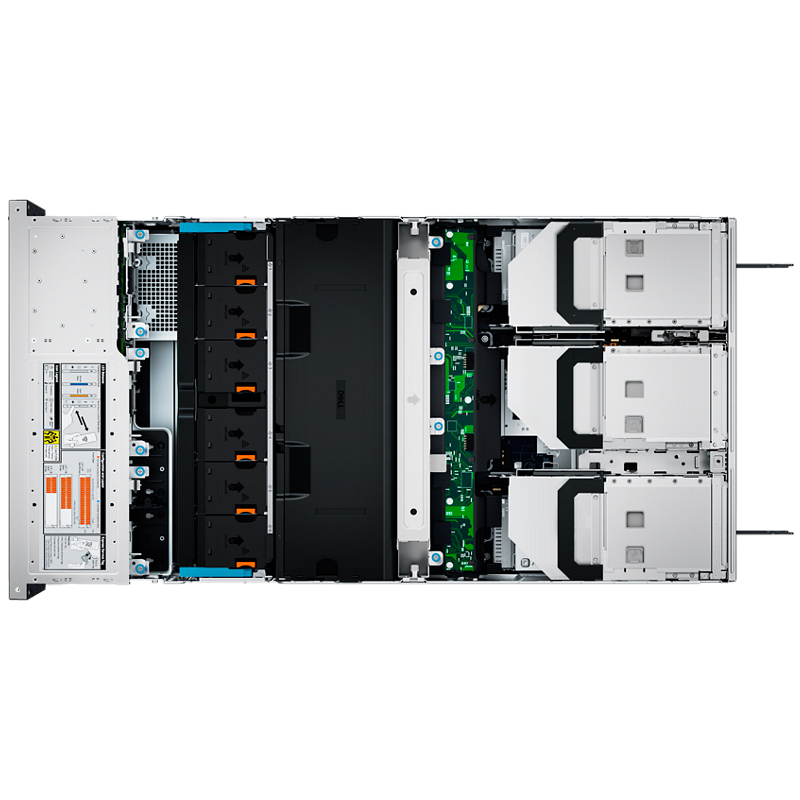

Dell R960 Side
Dell R960 Interior

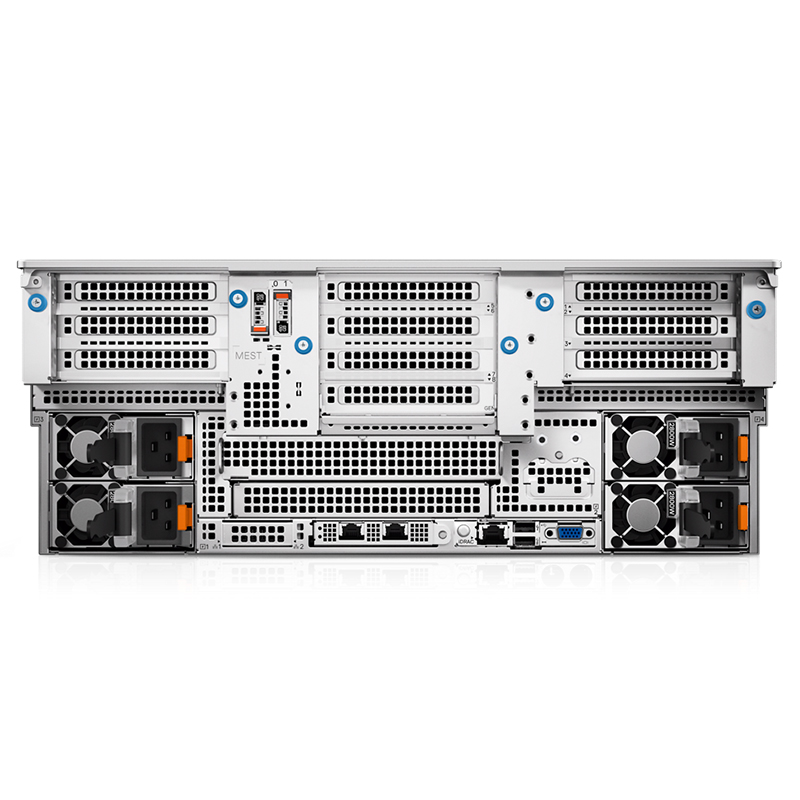

Dell R960 Port
Server Details
Server Component
Application Scenario
Application Scenario
Exhibition
Exhibition
Packing & Delivery
Packing 1
Packing 2

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

FAQ
Q1: When can I get the quotation?
We usually quote within 24 hours after receiving your inquiry. If you are in a hurry, please inform us; we will give priority to your inquiry.
Q2: Why choose us?
We prioritize quality and reputation. Our whole machine products provide a 3-year replacement warranty, and we have a complete supply chain to handle after-sales problems effectively.
Q3: Are the memory components original?
Yes, all memory components are original brand chips, and we strictly test the memory before every delivery.
Q4: What payment methods do you accept?
We accept Alipay, credit cards, bank transfers (T/T), and other secure payment methods to ensure a smooth transaction.
Q5: What is the minimum order quantity (MOQ)?
Different products have different MOQs. Please let us know your specific requirements, and we will do our best to accommodate small orders.
Q6: How does your product quality compare to the market?
We focus on high-quality components. While products may look identical from the outside, we ensure internal quality standards that support long-term, reliable business operations.
